Extractor hoods
C70-I
Exhaust hood with induction
Supravent® C70 series exhaust hoods are designed to cover the needs of commercial kitchens that require efficient solutions for filtration and extraction to create the most comfortable and smoke-free environment.
Supplied for wall or central installations Supravent® hoods are specified and manufactured to adapt to all site constraints such as beams, columns, etc. Each configuration can be supplied in the FULL or BREAK (wedge shaped) version.
The C70-I hood series allow make-up air to be brought into the hood, improving fume captation and reducing the amount of air that needs to be introduced into the kitchen. Supravent® induction hoods are extremely well suited for very cold or hot environments as the fresh air inside the hood doesn’t interfere with the thermal comfort in the kitchen.
Supplied for wall or central installations Supravent® hoods are specified and manufactured to adapt to all site constraints such as beams, columns, etc. Each configuration can be supplied in the FULL or BREAK (wedge shaped) version.
The C70-I hood series allow make-up air to be brought into the hood, improving fume captation and reducing the amount of air that needs to be introduced into the kitchen. Supravent® induction hoods are extremely well suited for very cold or hot environments as the fresh air inside the hood doesn’t interfere with the thermal comfort in the kitchen.
Installation
- Wall and central
Construction
- 100% AISI 304 stainless steel
- Fully welded and polished
Optional
- Welded stainless steel mesh filters
- Built-in lighting system
- UV-C reactor
Description
Description
• Built-in air supply plenum
• Fully welded and polished
• Rounded and double-folded profiles on all end plates
• Single piece up to 6 m
• Made entirely of AISI 304 stainless steel.
• Plenum with built-in dampers from 2 m and upwards
• Fully welded and polished
• Rounded and double-folded profiles on all end plates
• Single piece up to 6 m
• Made entirely of AISI 304 stainless steel.
• Plenum with built-in dampers from 2 m and upwards
Technical information
Technical information
• Installation type: Wall / Central
• Hoods shorter than 3 m made of 1 mm sheet metal
• Hoods over 3 m made of 1.5 mm sheet metal
• Filter plates included: 490 × 490 mm or 390 × 490 mm
• Hoods shorter than 3 m made of 1 mm sheet metal
• Hoods over 3 m made of 1.5 mm sheet metal
• Filter plates included: 490 × 490 mm or 390 × 490 mm
Optional accessories
Optional accessories
• Welded stainless steel mesh filters
• Built-in lighting system
• UV-C reactor
• Built-in lighting system
• UV-C reactor

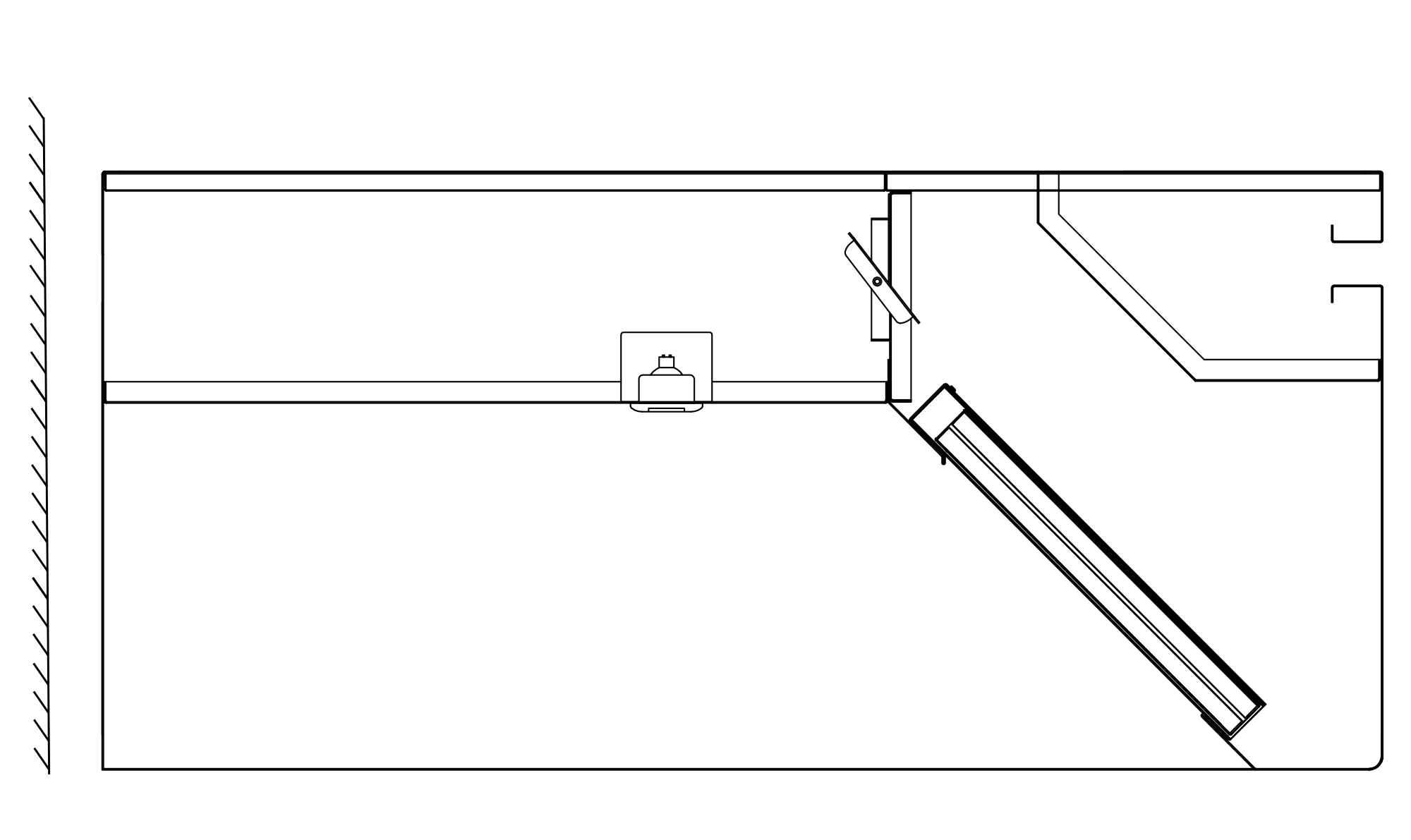

Hood section view
C70-I Central and wall
