Extractor hoods
C70 AQ Aqua
Extractor hood with water recycling and spraying system
The Supravent® Aqua extractor hood is the result of many years’ experience in filtration systems for large kitchens. Designed with an environmentally friendly water mist spray system with recycling technology.
It provides a safe and efficient solution for industrial cooking equipment and, more specifically, for charcoal or wood-fired cooking equipment.
Unlike other cooking equipment, charcoal ovens, open grills and rotisseries using solid fuels generate significant temperatures and a certain amount of grease and ash residues.
It provides a safe and efficient solution for industrial cooking equipment and, more specifically, for charcoal or wood-fired cooking equipment.
Unlike other cooking equipment, charcoal ovens, open grills and rotisseries using solid fuels generate significant temperatures and a certain amount of grease and ash residues.
Installation
- Wall and central
- Full and break
Construction
- 100% AISI 304 stainless steel
- Fully welded and polished
- Single piece up to 6 metres in length
Optional
- Double filtration with welded mesh filters
- Double filtration with baffle filters
- Water wash system
- Water mist system
- Water wash misty system
- Re-circulator
- UV-C ultraviolet reactor
- PCI fire protection system
Description
Description
• Water mist spray and recycling system
• Designed for industrial kitchens producing large quantities of grease and, more specifically, for charcoal or wood-fuelled cooking equipment.
• Built-in air supply plenum
• Fully welded and polished
• Rounded and double-folded profiles on all end plates
• Single piece up to 6 m
• Made entirely of AISI 304 stainless steel.
• Built-in lighting system
• Designed for industrial kitchens producing large quantities of grease and, more specifically, for charcoal or wood-fuelled cooking equipment.
• Built-in air supply plenum
• Fully welded and polished
• Rounded and double-folded profiles on all end plates
• Single piece up to 6 m
• Made entirely of AISI 304 stainless steel.
• Built-in lighting system
Technical information
Technical information
• Installation type: Wall and central
• Hoods shorter than 3 m made of 1 mm sheet metal
• Hoods over 3 m made of 1.5 mm sheet metal
• Internal baffle filters included: 490×490 mm or 390×490 mm
• Hoods shorter than 3 m made of 1 mm sheet metal
• Hoods over 3 m made of 1.5 mm sheet metal
• Internal baffle filters included: 490×490 mm or 390×490 mm
Optional accessories
Optional accessories
• Double filtration with mesh filters 490×490 mm or 390×490 mm stainless steel
• Double filtration with baffle filters 490×490 mm or 390×490 mm stainless steel
• Water wash system
• Water mist system
• Water wash misty system
• Re-circulator
• UV-C ultraviolet reactor
• PCI fire protection system
• Double filtration with baffle filters 490×490 mm or 390×490 mm stainless steel
• Water wash system
• Water mist system
• Water wash misty system
• Re-circulator
• UV-C ultraviolet reactor
• PCI fire protection system

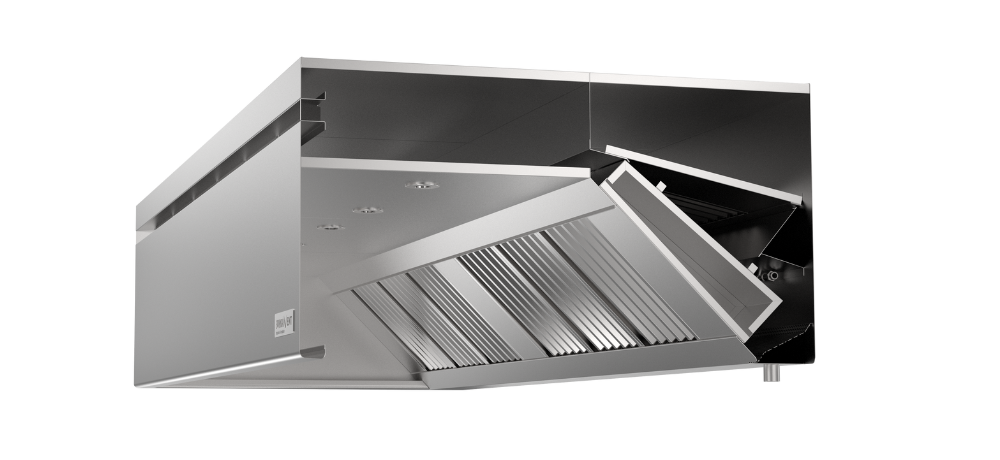

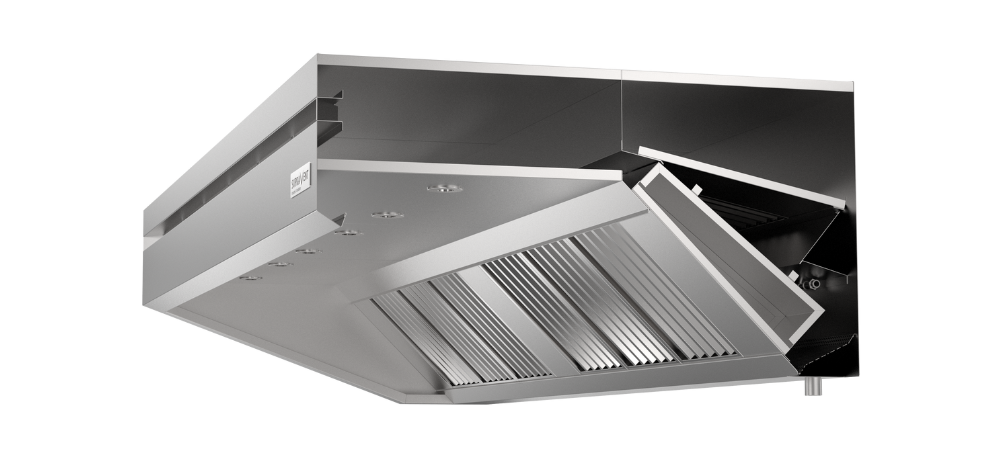

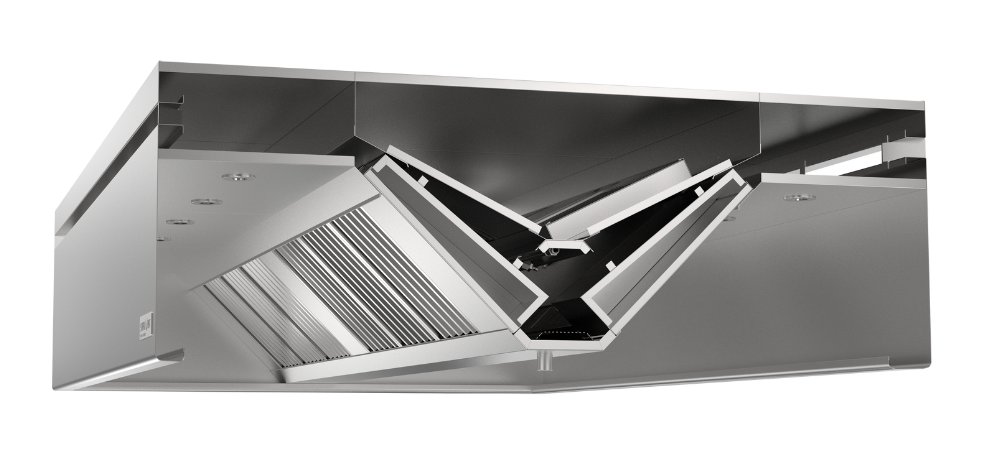

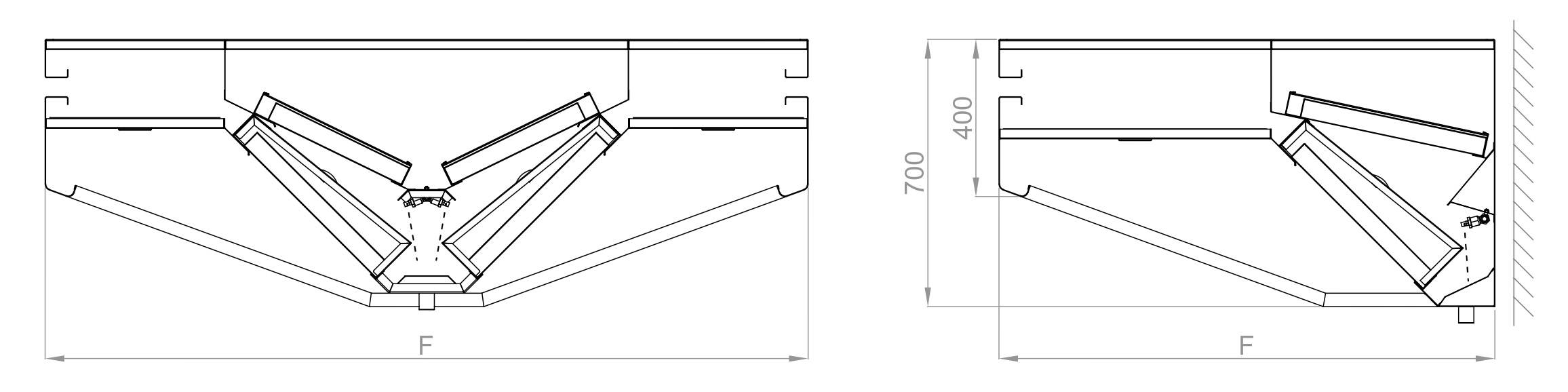

Hood section view
WALL INSTALLATION
