C70-PC
Compensating (fresh air supply) exhaust hood with peripheric filters

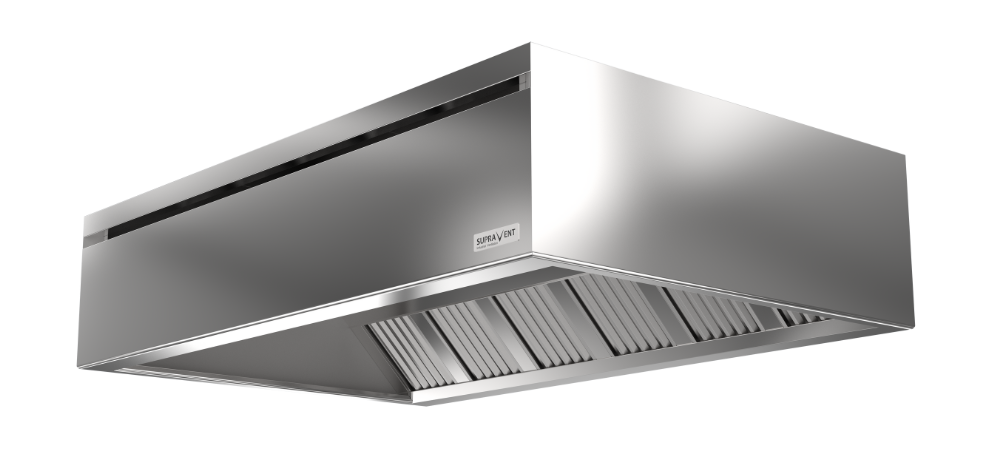

Supravent® C70 series exhaust hoods are designed to cover the needs of commercial kitchens that require efficient solutions for filtration and extraction to create the most comfortable and smoke-free environment. Supplied for wall or central installations Supravent® hoods are specified and manufactured to adapt to all site constraints such as beams, columns, etc.
The C70-PC series hoods are equipped with internal exhaust plenum and dampers allowing the adjustment of the exhaust flow along the hood, either to even the exhaust whenever the duct is placed on one side or to increase the flow where the most demanding cooking appliance is located. Equipped with filters placed at the periphery i.e. where the operator/cook stands, this configuration increases the capture efficiency for wall hoods over large appliances, such as ovens, while for central hoods, it improves the overall aesthetics.
Like other compensating hoods the C70-PC series allow the make-up air to be introduced into the kitchen through the hood itself, avoiding the installation of ceiling grills and their corresponding ductwork.
The C70-PC series hoods are equipped with internal exhaust plenum and dampers allowing the adjustment of the exhaust flow along the hood, either to even the exhaust whenever the duct is placed on one side or to increase the flow where the most demanding cooking appliance is located. Equipped with filters placed at the periphery i.e. where the operator/cook stands, this configuration increases the capture efficiency for wall hoods over large appliances, such as ovens, while for central hoods, it improves the overall aesthetics.
Like other compensating hoods the C70-PC series allow the make-up air to be introduced into the kitchen through the hood itself, avoiding the installation of ceiling grills and their corresponding ductwork.
Installation
- Wall and central
Construction
- 100% AISI 304 stainless steel
- Fully welded and polished
Optional
- Welded stainless steel mesh filters
- Built-in lighting system
Description
Description
• Filters at the front
• Built-in air supply plenum
• Fully welded and polished
• Rounded and double-folded profiles on all end plates
• Single piece up to 6 m
• Made entirely of AISI 304 stainless steel.
• Plenum with built-in dampers from 2 m and upwards
• Built-in air supply plenum
• Fully welded and polished
• Rounded and double-folded profiles on all end plates
• Single piece up to 6 m
• Made entirely of AISI 304 stainless steel.
• Plenum with built-in dampers from 2 m and upwards
Technical information
Technical information
• Installation type: Wall
• Hoods shorter than 3 m made of 1 mm sheet metal
• Hoods over 3 m made of 1.5 mm sheet metal
• Filter plates included: 490×490 mm or 390×490 mm
• Hoods shorter than 3 m made of 1 mm sheet metal
• Hoods over 3 m made of 1.5 mm sheet metal
• Filter plates included: 490×490 mm or 390×490 mm
Optional accessories
Optional accessories
• Welded stainless steel mesh filters
• Built-in lighting system
• Built-in lighting system
Hood section view

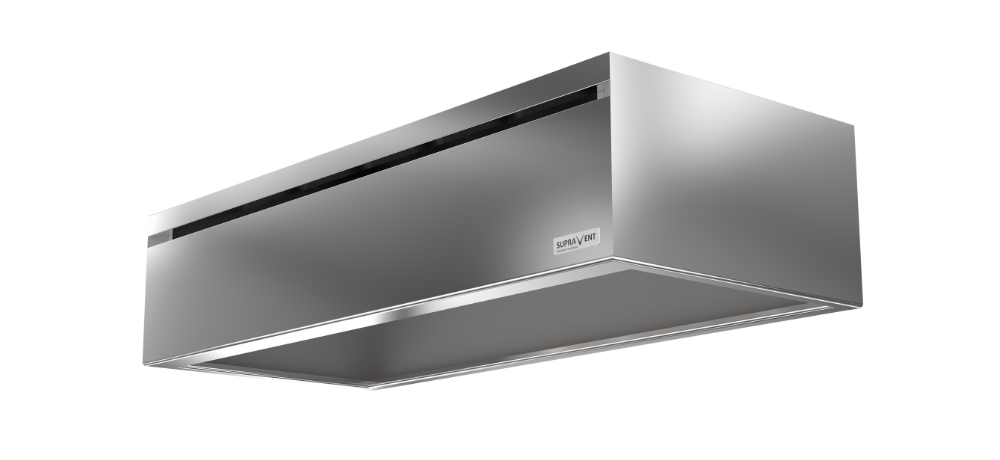

WALL INSTALLATION
